TRL/SE arrays

Typical Applications

  • Wrought / cast stainless steel components, austenitic structures
  • Dissimilar metal welds
  • Clad components
  • Safe end / sub clad of nuclear vessel
  • Pressurised welds


Thanks to the acoustically isolated transmit and reveive transducers, the emitted wave does not interfere with the received wave, allowing a reduced blind zone under the surface, and a better signal to noise ration for the inspection. The angle between transmit and received transducers helps to reduce the level of back scattering echoes.

The transmit and receive transducers can be of various types:

Integral or removable ?

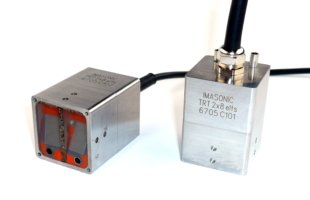

TRL/SE probes can be either integrated or with removable wedge. Both concepts can be used with monolithic, linear or matrix probes

Integral probes

They are dedicated to industrial use with fixed configuration. They are more compact and easy to handle with a scanner, but the wedge angle and transducer position are fixed.

Removable probes

They are more flexible as the wedge geometry and transducers position can be changed by changing the wedge

Advantages or TRL/SE probes

  • Possibility of steering and skewing (matrix only) the beam
  • Absence of dead zone
  • Focusing effect in the beam crossing region
  • Improvement of defect response
  • Reduction of the backscatter signal
  • Improvement of signal to noise ratio

General Characteristics

  • Frequency from 500 kHz to 5 MHz
  • Unlimited number of elements, typically 2 x 16 to 2 x 128
  • High S/N ratio and optimized pulse length thanks to acoustic matching to wedge material (Rexolite, Plexiglas, PEI, etc)
  • High acoustic insulation between transmit and receive sides
  • High reliability over time thanks to a robust, watertight design, compatible with difficult industrial environments


  • Housing customized for the mechanical environment (inspected parts, scanner, wedges, etc)
  • Customized connection
  • Adaptation to a particular environment (temperature, pressure, radiation, chemical compatibility)
  • Halogen-free for nuclear environments
  • Water inlets

TRL Probe Design

IMASONIC can help you to design your TRL probe, and particularly the incidence angle, roof angle and distance between transmit and receive transducers to reach the targeted focal zone with the desired refracted angle.

We can also simulate in detail the beam crossing area to evaluate the detection and sizing capabilities of the probes.
With the customer’s agreement, IMASONIC can collaborate with partner companies with experience in inspection methods based on TRL probes, to offer already-qualified solutions for various inspections.
