Examples of single element transducers

These examples illustrate IMASONIC’s capabilities to design and build products with widely varying requirements and application constraints. It is not a catalog or an exhaustive presentation of our achievements.

General features

Active diameter From a few mm to 200 mm
F number down to 0.5
Acoustical Intensity from 1 to 50 Wac/cm²  (see Technical Note #3)
Other features (mechanical design, connection, etc.) customized

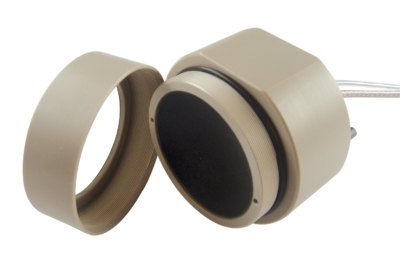

  • MRI compatible transducer with water box

  • Single element high power transducer with integrated imaging array

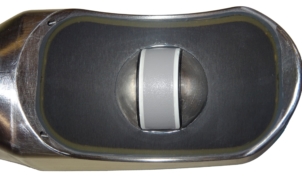

  • Single element transducer with central hole for echographic probe

Courtesy Theraclion

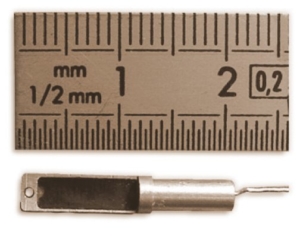

  • Miniaturized dual mode transducer
